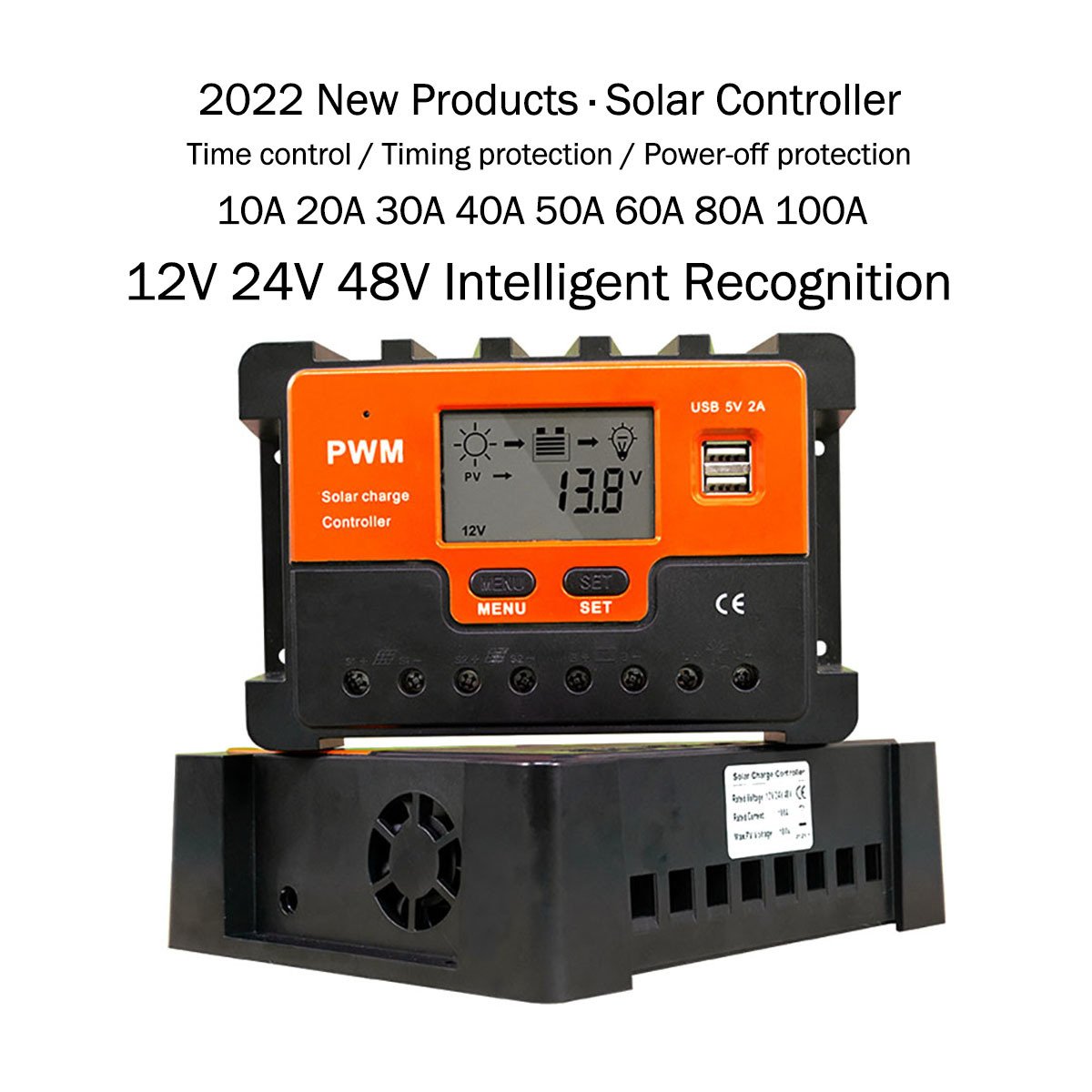

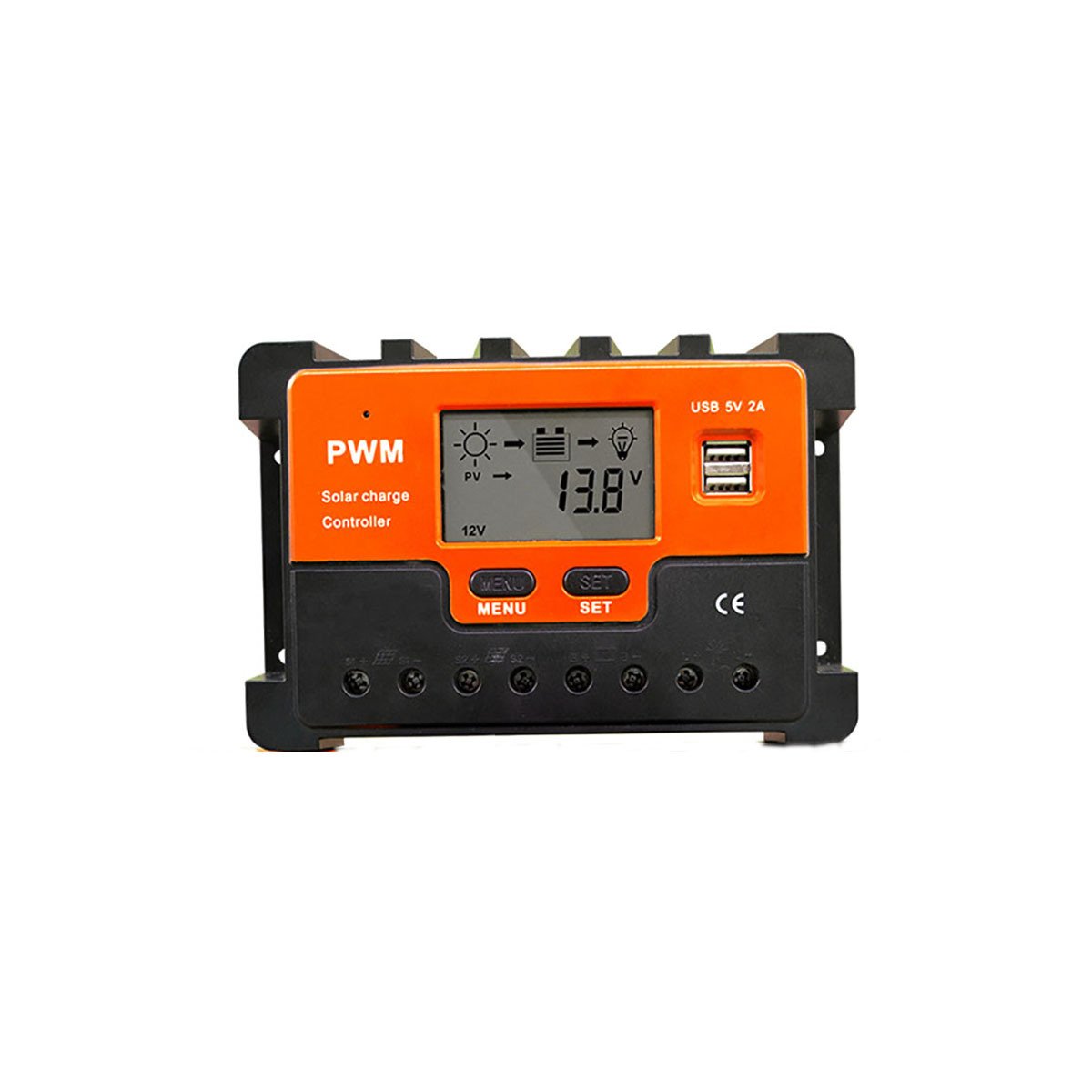

10A/20A/30A/40A/50A/60A/80A/100A PWM Solar Charge Controller 12V/24V/48V Battery Equalizer Charger Solar Controll Regulator

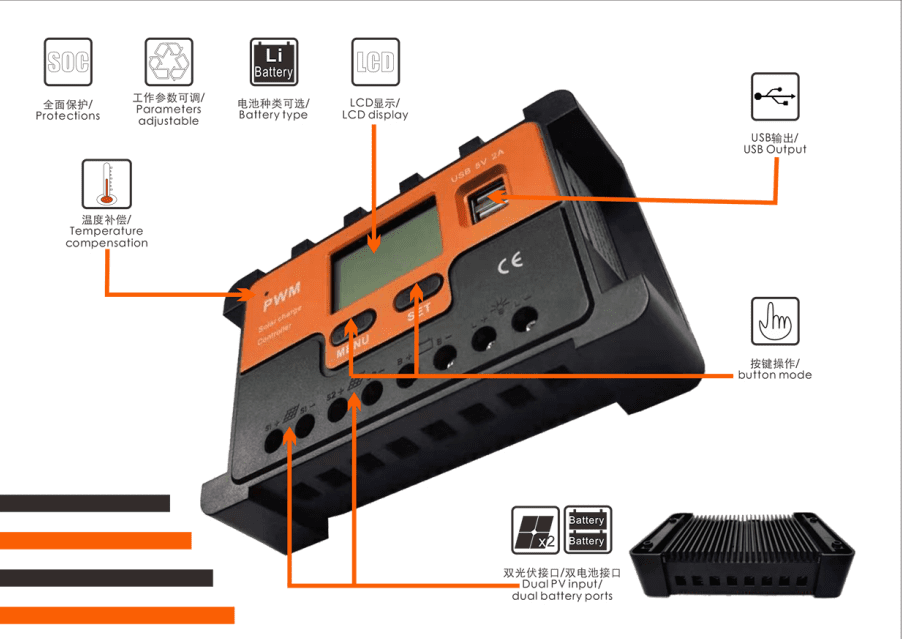

The product is based on series-type pulse width modulation (PWM) charging mode; with fully digital technology; LCD display and dual USB interface design;

full Automatic operation mode; wide range of applications. Such as: home power supply system; traffic light; solar street light; garden light system; etc. This product has many remarkable features.

⭐1: Adopt high quality and low failure rate devices of international famous brand (ST) to ensure the service life of the product:

⭐2: Within the working environment temperature (-15℃～50℃); it can operate continuously at full load with rated charging current

⭐3: 3-stage PWM charging: strong charge; boost; float charge:

⭐4: lithium battery; gel; open type and user mode four types of battery charging program can be selected

⭐5: LCD display design; dynamic display of equipment operating data and working status:

⭐6: Humanized key settings; more comfortable and convenient operation

⭐7: Dual USB interface design; to achieve DC power for electronic equipment charging function. :

⭐8: a variety of load control mode: manual mode; light control mode; light time control mode

⭐9: With battery temperature compensation function

>>Function

Time control; timer switch protection

Battery over-voltage and over-current protection

Power failure protection

Overcharge protection

Deep discharge protection

Reverse connection protection

Overheat temperature protection

Voltage and current adjustable

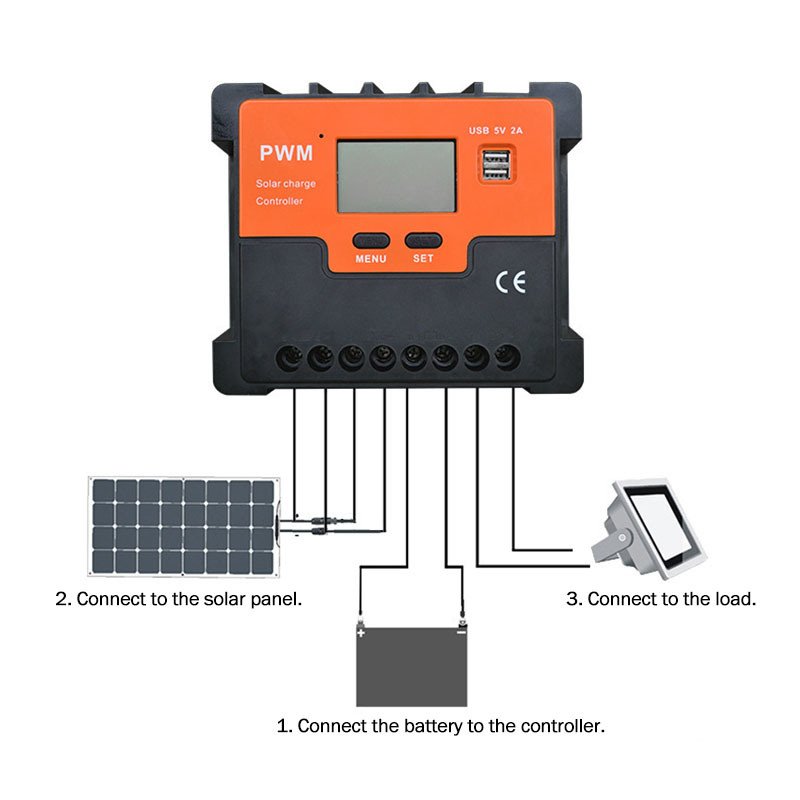

>>Connection method

①Connect the battery

Note: The battery end needs to be installed with insurance; and the recommended installation distance is no more than 150mm.

②Connect the load

③Connect the PV

Connect the battery; identify the controller system voltage; observe the LCD display status; if the work is not normal; refer to the manual

※ When the load is on; the USB interface can provide 5VDC/2A (total) power; and has a short-circuit protection function

※If the system is connected with inverter or other equipment with higher current load; please

Connect the inverter directly to the battery; never to the load side of the controller.

Notice:

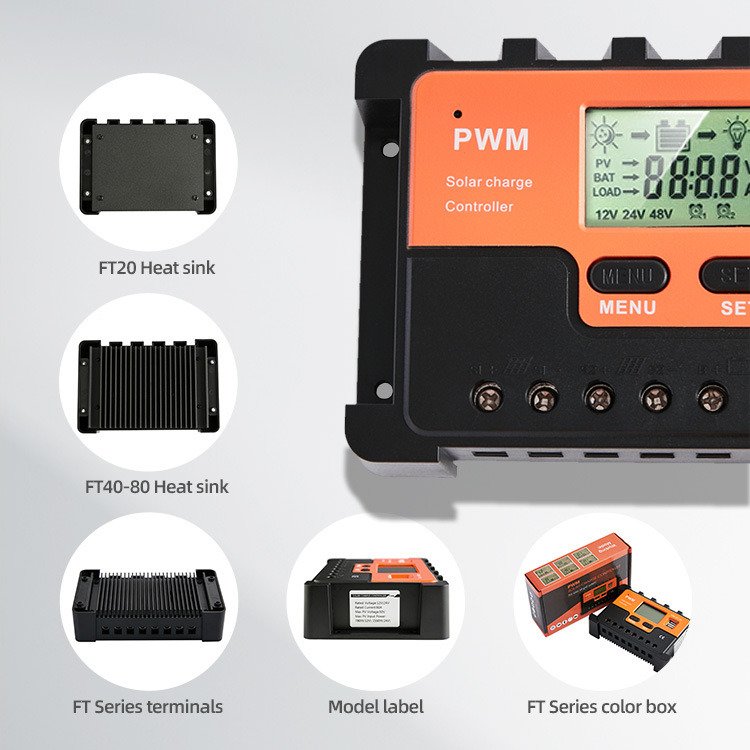

80A/100A with fan cooling function; other models do not have this function

Charging efficiency is 15% higher than the same level of PWM controller; it can truly achieve PWM floating charge; they are suitable for solar charging and load charging control of batteries and battery packs; for large voltage off-grid solar systems.
